特点 Features

1,线圈功耗低 Low coil power consumption.
2,功耗低 Low coil consumption.
3,体积小，重量轻 Small size,Light weight .
4,可直接焊接在印刷细路板中 PC board mounting.
5,可用于自动装置,通讯设备,无线电遥控,声控玩具 Suitable for automation facilities,telecommunication equipment,household electrical appliance,wireless radio remote control,sound control toys application etc

订货信息 Ordering information

CRST115F--2C---S-12 08--L
   1      2  3 4  5  6

1,型号 Part number: CRST115F
2,触点形式 Contact arrangement:  1A:1A(SPST);2A:2A(DPST);1C:1C(SPDT);2C:2C(DPDT)
3,封装形式:S:试水式;无:防尘式   Enclosure: S:Sealed type; Nil:Dust cover
4,线圈额定电压 Coil Rated voltage(V):DC:3,5,6,9,12,24,48
5,触点电流 Coil rated voltage(V):8A,12A,16A
6,线圈功耗Coil power consumption:无Nil 0.72W;低功耗L:0.41W

触点数据 Contact data

触点形式 Contact Arrangement

1A(1H)(SPST NO);2A(DPST NO);1C(1Z)(SPDT);2C(2Z)(DPDT)

触点材料 Contact Material

AgCdO, AgSnO₂

触点负载(阻性) Conatct Rating(Resistive)

Contact Arrangement

1A,1C

1A,1C

2A,2C

阻性 Resistive

16A/250VAC;30VDC
1A:20A/120VAC

12A/250VAC;30VDC

8A/250VAC;30VDC

感性 Inductive

8A/250VA;30VDC

6A/250VAC;5A/30VDC

4A/250VAC,3A/30VDC

最大切换功率Max.Switching Power

阻性 Resistive

480W  4000VA

300W  2500VA

150W  1250VA

感性 Inductive

240W  2000VA

150W  1875VA

90W   500VA

最大切换电压 Max.Switching Voltage

125VDC  440VAC最大切换电流Max.Switching Current:20A

触点阻性或压降
Contact Resistance or Voltage Drop

≤100mΩ

寿命 Operation Life

电气 Electrical

10⁵

机械 Mechanical

10⁷

线圈参数 Coil Parameter

线圈电压
Coil voltage
(VDC)

线圈电阻
Coil Resistance
Ω±10%

吸合电压VDC(最大)
Pick up Voltage VDC(Max)
(额定电压的70%)
(70% of rated voltage)

释放电压VDC
Release voltage VDC(Min)
(额定电压的10%)
(10% of rated voltage)

线圈功耗
Coil power consumption
(W)

动作时间
Operate Time
(mS)

释放时间
Release Time
(mS)

额定
Rated

最大
Max

5

6.5

61

3.5

0.5

0.41

≤10

≤5

12

15.6

351

8.4

1.2

24

21.2

1405

16.8

2.4

12

15.6

200

8.4

1.2

0.72

24

31.2

800

16.8

2.4

技术特性 Operation condition

绝缘电阻 Insulation Resistance

最小 1000MΩ min(at 500VDC)

介质耐压 Dielectric Strength
断开触点间 Between Contacts
触点与线圈间 Between Contacts and Coil

50Hz 500V
50Hz 500V

耐冲击 Shock Resistance

100m/s²   11ms

抗振性 Vibration Resistance

10~55Hz 双振幅 Double amplitude 1.5mm

引出端强度 Terminals Strength

10N

可焊性 Solderability

235±2℃   3±0.5s℃

环境温度 Ambient Temperature

-40~85℃

相当湿度 Relative Humidity

85%(at 40℃)

质(重)量 Mass

11g~12g

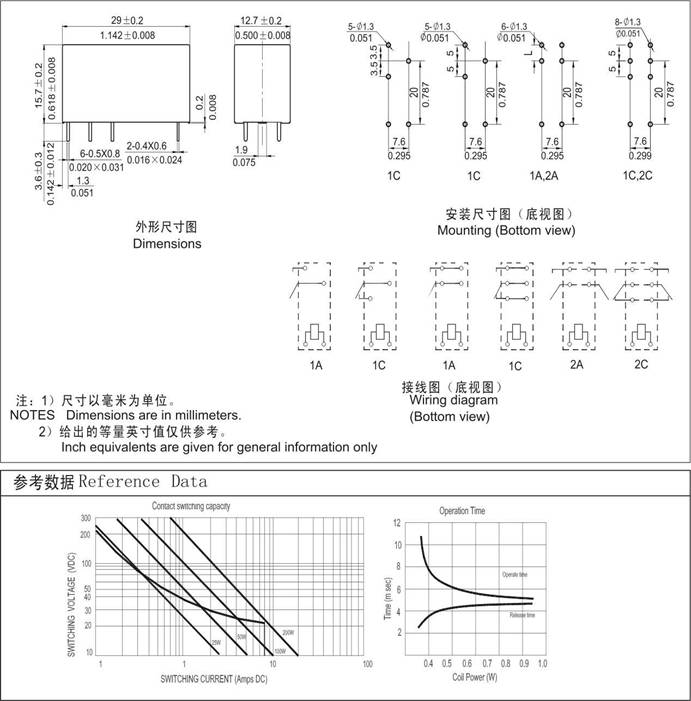

外形尺寸 Dimensions(mm/Inch)
